from 2.606,10 € excl. VAT
Find your dealer City Compact

City Compact

City Compact

The City Compact lives up to its name and folds up easily and extremely compactly. This makes it wonderful to transport. Thanks to its quick folding mechanism, it is also the perfect companion for travelling, shopping and public transport.

The toothed belt means that the City Compact also requires much less maintenance and does not need any oil, which can settle in the transport vehicle and thus make it dirty.

Special feature

From wheelchair to tricycle

With the adaptive bike, the two castors of the wheelchair are raised, which significantly improves the off-road mobility. Whether cobblestones, gravel and dirt paths, uneven or muddy trails, these nightmare-inducing conditions no longer become an obstacle!

Handbike as sports and leisure equipment

Handbikes have a significant benefit for their riders. Due to the various movements that occur while riding, the muscles can be built up and physical coordination trained.

Illustration can deviate.

Hub gear

The hub gear brings many advantages. On the one hand, the wear and the associated maintenance effort is greatly reduced. On the other hand, the gearshift is protected from external influences due to the design. On top of that, the gears can also be shifted through while standing.

Illustration can deviate.

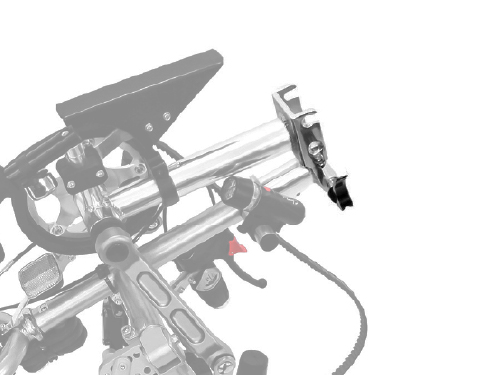

Easy to fold

The folding mechanism, which is located on the upper third of the handlebar, can be conveniently operated in 3 steps. Folding makes the handbike much more compact, so that it can easily fit in the boot of a smaller car, for example.

Product images

+
+
+
+
+
+
+
+
+
+

Basic equipment

The specifications depend on the model and equipment and may therefore differ. You will receive binding information when ordering or in the offer.

You will find further equipment options under the menu items Tetra equipment (if available), Special equipment and Individualization.

Data sheet

Drive type Hand crank with Timing belt drive
Gears / pinion Shimano 7-speed hub gears with 69/40 Chainring
Wheel size 16 inch
Break V-break and Coaster brake Stricker handbikes and power assist devices are always equipped with double mechanical brakes such as coaster brake, V-brake and disc brake. If there is only one type of brake, it is double equipped, e.g. with two brake calipers on one disc brake or one disc brake and one V-brake. In addition, at least one of the existing brakes can be locked in order to park the handbike or power assist device. This ensures full safety.
Total weight From 13 kg
Max. user weight Standard load up to 120 kg user load. More than 120 kg is possible on request.

Equipment

Drive

Illustration can deviate.

Hand crank

The ergonomically mounted crank handle provides the drive.The handle lies comfortably in the hand, so that a longer distance can be covered without cramps in the palm of the hand.

Illustration can deviate.

Shimano hub gears

The Shimano hub gear, which is located in the wheel hub, provides a reliable, sophisticated shifting of the available gears. Due to the placement in the wheel hub, the gearshift is protected from external influences.

Illustration can deviate.

Ergonomic handles stemless with twist shifter

The comfortable ergo grips are cleverly mounted so that the centre of gravity is central to the axis of the hand crank. The gearshift device is a twist grip gearshift and is located on the handle.

Illustration can deviate.

Coaster brake

The coaster brake is a proven brake with great power transmission.

Illustration can deviate.

A

V-break

The V-brake is a simple and straightforward brake that is very accessible.

Electronic

Illustration can deviate.

Front light

An LED lamp at the front provides illumination of the roadway. It is supplied with power via commercially available batteries.

Illustration can deviate.

Rear light

The rear light is mounted on the back of the wheelchair. The lighting is operated by a button cell and switched on and off by a switch on the rear light.

Frame and coupling

Illustration can deviate.

Stricker clamping system

With our specially developed Stricker clamp system, our handbikes and power assist devices are quick and easy to attach to any wheelchair - and usually without adapters or modifications to the wheelchair. The wheelchair or owner change can thus take place easily and within a very short time.

The diverse adjustment possibilities of the frame in conjunction with the clamp allow attachment to countless frame shapes, profiles and angles.

Illustration can deviate.

Stricker frame

The frame on the Stricker handbikes and power assist devices, which is made of high-grade bicycle steel with chrome-molybdenum alloy, can be adapted to all needs thanks to the wide range of adjustment options. The frame also allows adaptation with the Stricker clamping system to almost all wheelchairs even without adapters, conversions or stems.

Wheel

Illustration can deviate.

16 inch wheel

The 16-inch wheel is relatively compact, but still offers enough riding comfort.

Colors

Illustration can deviate.

Black

A slightly standout black with some sheen.

Illustration can deviate.

Matte black

A convincing matt black is always timeless and suitable for any occasion. The matt black blends in with any colour on the wheelchair.

Illustration can deviate.

Metallic silver

The metallic silver shade has a special, robust shine. The subtle color submits to any environment and thus stands out little.

Illustration can deviate.

Blue

Blue looks restrained, cool and businesslike.

Illustration can deviate.

Red

Red is a passionate color, which always puts itself in the center.

Special equipment

Stricker handbikes and power assist devices are adaptable to a wide variety of needs through our large range of equipment options and accessories. On this page you will get a small overview of common equipment options of this model range.

Further equipment options and additional accessories matching the model series can be found in the respective offer form.

Common options

Planetary gear

The planetary gearbox doubles the available gears and is used for reduction. This is especially useful on hills, on steep slopes, or when there is less power in the arms. It is used in both chain and toothed belt drives.

Reverse gear

The handbike or power assist device can be manoeuvred more dynamically using reverse gear.

Individualization

Stricker handbikes and traction devices can be customized. In addition to obvious customization options such as the seat width and the resulting frame size, there are also other ways to personalize the companion. On this page you will get an impression about the individualization possibilities of the product.

Available colors and coatings can be found on the colors and coatings page. All RAL special colours are available at an extra charge.

Colors

Illustration can deviate.

Frame color

On the frame, all the tubes can be colored in any color.

Coatings

Illustration can deviate.

Coating on the mudguard

The mudguard can be coated.

Illustration can deviate.

Coating on the automatic latch

The cap of the automatic latch can be coated.

Illustration can deviate.

Coating on the crank

The cranks can be fully coated.

Illustration can deviate.

Coating on the ergonomic handle

The ergobars of the hand crank can be completely coated.

Videos

City Compact - Stricker Handbikes

Installation

[EN] Unpacking Video Stricker Handbikes: Undo transport settings

[EN] Installation Video Stricker Handbikes: Mount handbikes & power assist devices to a wheelchair

Documents

Are you looking for the right documents? We have collected a suitable selection of documents and information under the following links.

General Downloads under downloads.

Unpacking and installation guide under Help & Media.

Certificates under About us.

If you need further documents, we will be happy to help you personally. You can reach us via the contact form or by phone during our opening hours.

Documents for dealers

For dealers and distributors, our images are also available in full size and high resolution for all purposes. Whether on the web or as a print template. Contact us directly to get access to records, pictures, documents and more. We look forward to receiving your request.
